Blinking LEDs

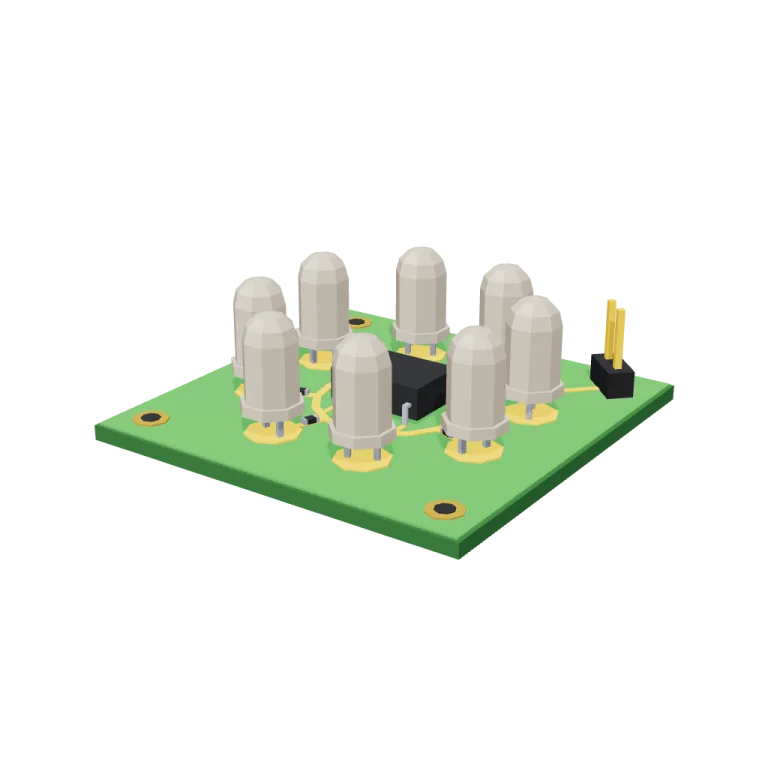

An LED chaser tile from the Circuit City kit: eight 5 mm LEDs stand on their legs in a ring around a black driver chip on a green circuit board, wired by gold traces. The lit lenses chase around the ring, alternate, then flash together in a seamless 6.4 s loop.

Original GLB253 KB Poster

Left rail: colours and the 4 knobs the agent wrote into this model — they rebuild the geometry and go into your download. Right rail: looks for the viewer. Drag to orbit, scroll to zoom.

Triangles: 2,804
Vertices: 5,206
Meshes · materials: 37 · 10
Size (W × H × D): 4 cm × 1 cm × 4 cm
File: GLB · 253 KB
Animation: scene-motion · 6.4s
Style: Low-poly
Collection: Circuit City

Palette · named materials

board top (solder mask)#3a883a
board core / edge#235223
traces, pads, header pins#d0a225
mounting rings#8f7019
driver chip, header block, resistors, mounting holes#151619
LED legs, chip pins, resistor caps, pin-1 mark#7d828c
unlit LED lens and flange#988e81
lit LED lamp (emissive)#f2ede2
lit LED lamp (emissive)#debd63
lit LED lamp (emissive)#5db15d

Use it

import { GLTFLoader } from "three/addons/loaders/GLTFLoader.js";

const gltf = await new GLTFLoader().loadAsync(
  "https://assets.stoicsoft.com/1designtool/3d/models/circuit-city-blinking-leds/4445781063/model.glb"
);
scene.add(gltf.scene); // metres, +Y up, front faces +Z

const mixer = new THREE.AnimationMixer(gltf.scene);
gltf.animations.forEach((clip) => mixer.clipAction(clip).play());
// in your loop: mixer.update(delta)

How it was made

The brief given to 1DesignTool's “3D object” template:

Blinking LEDs for the Circuit City kit. Design it as one clear asset at believable real-world scale for that setting (state the size in metres in meta.notes), with its main parts modelled and named, readable at thumbnail size and from every orbit angle. It moves: author a seamless baked loop (2–12 s) with every pivot exactly at its hinge, axle or swivel, and keep the base still. This is one part of the Circuit City kit (Low-poly style, flat-lowpoly direction): The inside of a computer as a city. Use ONLY the kit palette, by name: board green #3a883a, gold traces #d0a225, black chips #151619, led colours #988e81, board green dark #235223, gold traces dark #8f7019, board green light #5db15d, gold traces light #debd63, soot black #1b1b22, warm white #f2ede2, mid grey #7d828c, dark wood #3d2a1c. Every material's `name` must be exactly the palette colour it uses — the GLB carries these names so the kit recolours as one; an unnamed material fails delivery. Kit knob: expose a param `ledColours` (0–1, default 0.5) for the kit's "LED colours" setting wherever it makes sense on this part, and keep that id.

Agent: Claude Code · Claude Opus 5.5 in 1DesignTool
Generation: 4.03M tokens (95% cached) · ≈ $2.98 at API prices · 5-hour plan +2%, weekly plan +1%
Direction: Low-poly · family abstract-kinetic
three-check PASS · glb-lint PASS
