Vintage Steam Locomotive

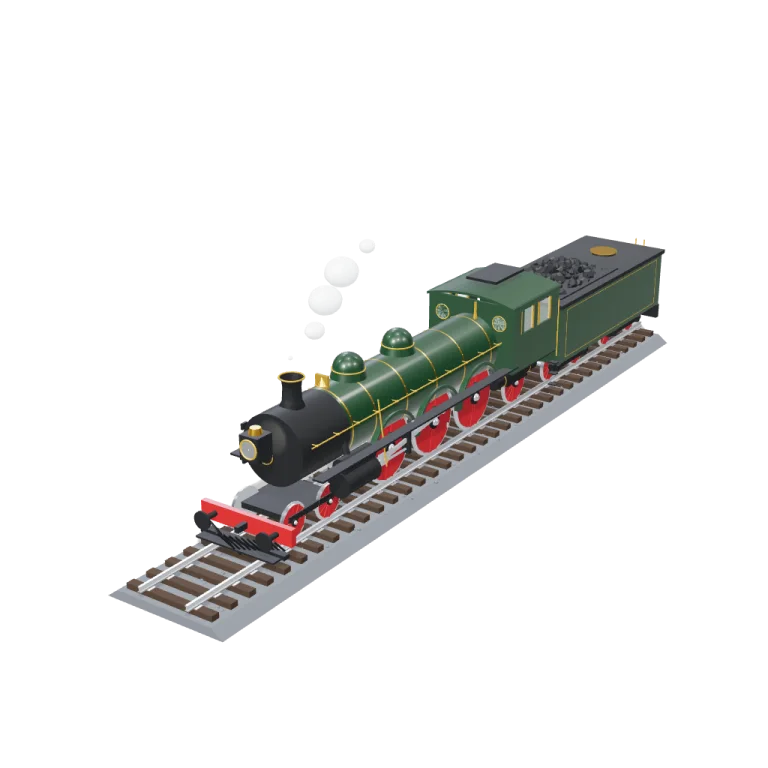

A 1920s mainline steam locomotive and coal tender at authentic 21-meter scale, complete with spoked driving wheels, working Walschaerts valve gear, and ballasted track.

Original GLB5.3 MB Poster

Left rail: colours and the 3 knobs the agent wrote into this model — they rebuild the geometry and go into your download. Right rail: looks for the viewer. Drag to orbit, scroll to zoom.

Triangles: 123,404
Vertices: 145,993
Meshes · materials: 112 · 112
Size (W × H × D): 3.5 m × 7.0 m × 23 m
File: GLB · 5.3 MB
Animation: scene-motion · 4.0s
Style: Product
Collection: Hero Props

Palette · named materials

body#1a3a24
brass#dfb140
ironBlack#1c1e21
bufferRed#a61c1c
machinedSteel#d2d6dc
wood#3d2e22
ballast#63676e
glass#eef4f8

Use it

import { GLTFLoader } from "three/addons/loaders/GLTFLoader.js";

const gltf = await new GLTFLoader().loadAsync(
  "https://assets.stoicsoft.com/1designtool/3d/models/vintage-steam-locomotive/124342b4c2/model.glb"
);
scene.add(gltf.scene); // metres, +Y up, front faces +Z

const mixer = new THREE.AnimationMixer(gltf.scene);
gltf.animations.forEach((clip) => mixer.clipAction(clip).play());
// in your loop: mixer.update(delta)

How it was made

The brief given to 1DesignTool's “3D object” template:

A 1920s mainline steam locomotive with its coal tender, at real scale (about 21 m long overall), as a polished hero model on a short section of track. Locomotive: a long cylindrical boiler with polished brass bands and rows of rivets, a tall flared smokestack, a sand dome and steam dome, a brass bell and whistle, handrails on stanchions along the boiler, a smokebox door with hinges and a round number-plate disc (blank, no text), a headlamp, a cow-catcher pilot at the front, two cylinders with valve chests, and the full Walschaerts valve gear (main rods, coupling rods, crossheads, radius rod) linking three pairs of large spoked driving wheels with counterweights, plus the leading and trailing trucks with smaller spoked wheels. The cab has windows with frames, a curved roof, steps and grab rails. The tender carries a heaped coal load, has riveted side panels and sits on two bogies. Track: sleepers, rails with tie plates, ballast. Paint: deep green boiler and tender with thin gold lining, black smokebox, chimney and running gear, red buffer beam and wheel rims, polished brass fittings, grey ballast — all named materials. No text, numbers, logos or lettering. Motion: a seamless 4 s baked loop — all wheels turn and the valve gear and coupling rods move correctly with them (pivots exactly on the crank pins), and a puff of steam rises from the chimney; the locomotive itself stays in place on the track. Hard requirement: the exported GLB must contain AT LEAST 100,000 triangles (target 120,000–200,000) — measure it before delivering. Spend the budget on modelled detail (rivets, spokes, valve gear, handrails, bevels), never on invisible subdivision. Keep the GLB under 20 MB: index geometry, instance repeated parts (rivets, spokes, sleepers), no image textures.

Agent: Antigravity · Gemini 3.8 Flash (High) in 1DesignTool
Generation: 13.03M tokens (89% cached)
Direction: Product · family vehicles
three-check PASS · glb-lint PASS

Make your own with 1DesignTool →

Named parts · 26

Vintage Steam Locomotive
Boiler & Smokebox
Locomotive Cab
Front Pilot & Cowcatcher
Cylinders & Valve Chests
Driving Wheels Assembly
Front Driving Wheels
Main Driving Wheels
Rear Driving Wheels
Walschaerts Valve Gear Assembly
Left Coupling Rod
Right Coupling Rod
Left Main Connecting Rod
Right Main Connecting Rod
Left Crosshead
Right Crosshead
Leading Pilot Truck Frame
Leading Pilot Wheels
Trailing Truck Frame
Trailing Truck Wheels
Coal Tender Body
Tender Coal Load
Tender Bogie Frames
Tender Bogie Wheels
Ballasted Track
Chimney Steam Puffs

Note: Seamless 4-second baked loop includes full Walschaerts reciprocating valve gear kinematics, quartered driving wheels, and billowing chimney steam.
