Catapult

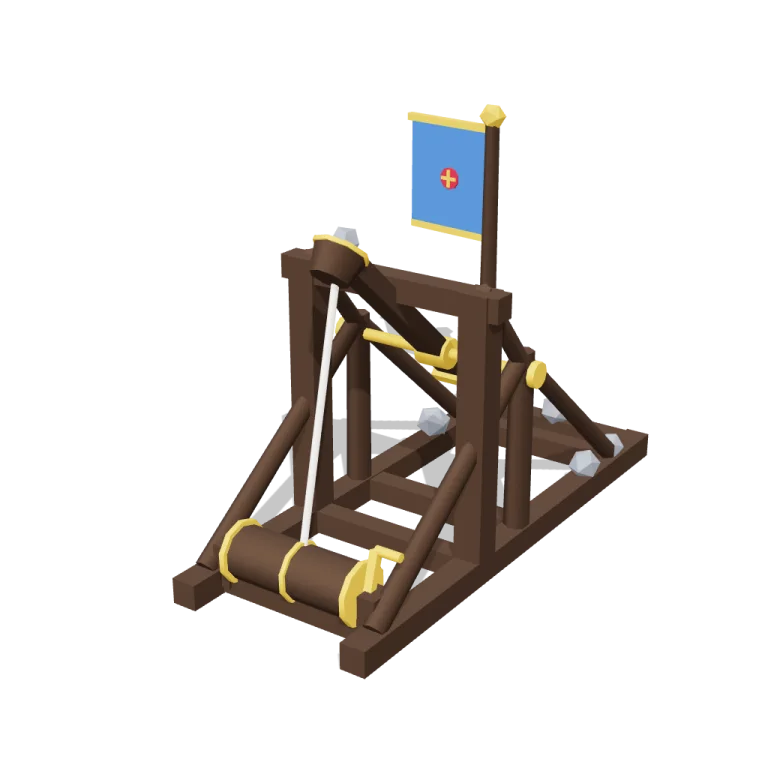

A flat-shaded dark-wood siege catapult with twin skids, braced uprights, a gold-ringed winch drum spliced to a draw rope, and the court's blue banner with gold-and-crimson crest. The cocked arm fires into the crossbar, bounces, and the winch winds it back down in a seamless five-second loop.

Left rail: colours and the 4 knobs the agent wrote into this model — they rebuild the geometry and go into your download. Bottom: what the model does — the one you pick plays here and is baked into the download. Right rail: looks for the viewer. Drag to orbit, scroll to zoom. On a desktop, Open in 1DesignTool turns it into a project you can keep editing with your agent.
- Triangles
- 1,160
- Vertices
- 2,204
- Meshes · materials
- 53 · 6
- Size (W × H × D)
- 1.2 m × 1.5 m × 2.1 m
- File
- GLB · 153 KB
- Animation
- scene-motion · 5.0s
- Style
- Low-poly
- Collection
- Royal Castle Court
Palette · named materials
- dark wood#3d2a1c
- gold#d0a225
- royal blue#2e67b8
- crimson#a51d34
- mid grey#7d828c
- warm white#f2ede2
Use it
import { GLTFLoader } from "three/addons/loaders/GLTFLoader.js";
const gltf = await new GLTFLoader().loadAsync(
"https://assets.stoicsoft.com/1designtool/3d/models/royal-castle-court-catapult/a8b0f4ea3a/model.glb"
);
scene.add(gltf.scene); // metres, +Y up, front faces +Z
const mixer = new THREE.AnimationMixer(gltf.scene);
gltf.animations.forEach((clip) => mixer.clipAction(clip).play());
// in your loop: mixer.update(delta)How it was made
The brief given to 1DesignTool's “3D object” template:
Catapult for the Royal Castle Court kit. Design it as one clear asset at believable real-world scale for that setting (state the size in metres in meta.notes), with its main parts modelled and named, readable at thumbnail size and from every orbit angle. It moves: author a seamless baked loop (2–12 s) with every pivot exactly at its hinge, axle or swivel, and keep the base still. This is one part of the Royal Castle Court kit (Low-poly style, flat-lowpoly direction): A bright castle for ceremonies and intrigue. Use ONLY the kit palette, by name: stone white #f4f1ec, royal blue #2e67b8, gold #d0a225, crimson #a51d34, stone white dark #d7cebc, royal blue dark #1f457a, stone white light #f9f8f6, royal blue light #6190d1, soot black #1b1b22, warm white #f2ede2, mid grey #7d828c, dark wood #3d2a1c. Every material's `name` must be exactly the palette colour it uses — the GLB carries these names so the kit recolours as one; an unnamed material fails delivery. Kit knob: expose a param `bannerCrestAndColours` (0–1, default 0.5) for the kit's "Banner crest and colours" setting wherever it makes sense on this part, and keep that id. Material names are the palette colour NAMES listed above (e.g. "leaf green", "dark wood") — never a hex code like "#3d2a1c". meta.json must be valid JSON.
- Agent: OpenCode · mimo-v2.6-flash-free in 1DesignTool
- Direction: Low-poly · family abstract-kinetic
- three-check PASS — 22 checks, 0 failed, 48 captures (1280x800 + 390x844; seek-deterministic, offline, GLB reload preserves all 8 plan part ids) · glb-lint PASS (0 errors, 1 sibling-overlap warning for intended arm/bucket nesting; tool verdict UNVERIFIED because no requirements contract was supplied)
Named parts · 8
- Catapult
- Chassis
- Throwing arm
- Winch drum
- Draw rope
- Banner
- Mast
- Ballast stones
Note: Size is approximately 1.16 × 1.49 × 2.10 m in metres; the GLB is baked at the default parameters and carries the clip scene-motion (5 s, seamless: hold cocked, fire up into the crossbar, bounce, winch winds back down). All six flat-shaded materials are named by their Royal Castle Court palette colour, so the kit recolours the whole catapult from one material map; metalness stays 0 and every mesh is flat-shaded. Part ids use the catapult.* namespace (hyphens are not valid in plan part ids). The single lint warning is the arm's intended nesting — arm-shaft, arm-hub and bucket parts share one bounding box by construction. Lint's five unverified rules come from having no requirements contract, not from a violation.
About the Catapult 3D model
Catapult is a free animated low-poly 3D model from the Royal Castle Court set. It measures 1.2 m × 1.5 m × 2.1 m (W × H × D) at real-world scale and is built from 1,160 triangles across 53 meshes, with 8 named parts and a baked animation (5.0 s). Download the 153 KB GLB and drop it into three.js, React Three Fiber, Godot or Blender — free for commercial use, no attribution required.
- Is the Catapult 3D model free for commercial use?
- Yes. It is free under the 1DesignTool 3D library license: use it in personal and commercial work — games, apps, websites, renders, ads and client projects — and modify it as you like, with no credit required. What you can't do is re-sell or re-distribute the file on its own or inside a model pack.
- What file format is it, and how big is it?
- A single binary glTF 2.0 file (.glb), 153 KB: 1,160 triangles, 2,204 vertices and 6 materials, modelled in metres at 1.2 m × 1.5 m × 2.1 m.
- Is Catapult animated?
- Yes — the GLB carries a baked animation (5.0 s), ready to play with any glTF animation mixer.
- Which engines and tools can open it?
- Anything that reads glTF 2.0. three.js, React Three Fiber, Babylon.js, Godot 4 and Blender import the GLB directly; Unity and Unreal Engine load it through their glTF importers. The snippets above show the exact code for three.js, React Three Fiber, Godot and Blender.
- How was the Catapult 3D model made?
- OpenCode (mimo-v2.6-flash-free) generated it inside 1DesignTool's 3D template from a written brief, then the design kit's checks verified the geometry and the GLB before it was published. You can make your own the same way with 1DesignTool.
