Telescope on a Swivel

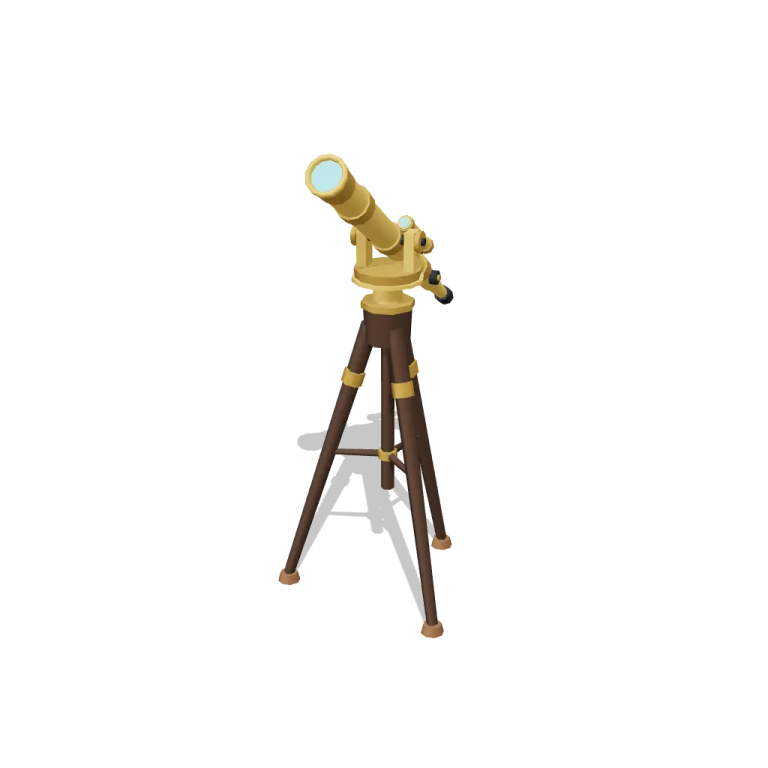

A low-poly brass astronomer's telescope, about 1.7 m tall, on a dark wood tripod. The banded tapered tube, finder scope and eyepiece pan and tilt about a visible swivel pivot in a seamless 10 s loop.

Original GLB138 KB Poster

Left rail: colours and the 4 knobs the agent wrote into this model — they rebuild the geometry and go into your download. Right rail: looks for the viewer. Drag to orbit, scroll to zoom.

Triangles: 1,476
Vertices: 2,319
Meshes · materials: 45 · 6
Size (W × H × D): 70 cm × 1.7 m × 1.1 m
File: GLB · 138 KB
Animation: scene-motion · 10.0s
Style: Low-poly
Collection: Wizard's Tower

Palette · named materials

body#b08d3c
trim#8a6a22
wood#3d2a1c
earth#6b4a2f
accent#5fd3e6
dark#1b1b22

Use it

import { GLTFLoader } from "three/addons/loaders/GLTFLoader.js";

const gltf = await new GLTFLoader().loadAsync(
  "https://assets.stoicsoft.com/1designtool/3d/models/wizards-tower-telescope/f0d38a9817/model.glb"
);
scene.add(gltf.scene); // metres, +Y up, front faces +Z

const mixer = new THREE.AnimationMixer(gltf.scene);
gltf.animations.forEach((clip) => mixer.clipAction(clip).play());
// in your loop: mixer.update(delta)

How it was made

The brief given to 1DesignTool's “3D object” template:

A brass astronomer's telescope about 1.6 m tall on a dark wood tripod: a long tapered brass tube with aged gold bands, a finder scope, an eyepiece, and a swivel head with a visible pivot. The tube slowly pans left and right and tilts up and down in a seamless 10 s baked loop, rotating exactly about the swivel head's pivot; the tripod stays still. This is one part of the Wizard's Tower kit (Low-poly style, flat-lowpoly direction). Use ONLY the kit palette, by name: midnight blue #1d2448, deep violet #4b2a6b, lavender #8a6fb3, brass #b08d3c, aged gold #8a6a22, candle yellow #f2c94c, flame orange #e8833a, stone grey #6e6f78, dark stone #3e3f47, cliff slate #55606e, parchment #e7d7b1, oak brown #6b4a2f, dark wood #3d2a1c, moss green #5f7d4a, rune cyan #5fd3e6, soot black #1b1b22. Every material's `name` must be exactly the palette colour it uses (e.g. "brass", "dark wood") — the GLB carries these names so the kit recolours as one; an unnamed material fails delivery. Kit knobs: expose a param `magicGlow` (0–1, default 0.6) that scales every emissive magic element.

Agent: Claude Code · Claude Opus 5.5 in 1DesignTool
Generation: 0.79M tokens (91% cached) · ≈ $0.78 at API prices · 5-hour plan +3%
Direction: Low-poly · family abstract-kinetic
three-check PASS · glb-lint PASS (0 errors, 2 non-blocking heuristic warnings)

Make your own with 1DesignTool →

Named parts · 25

Telescope on a Swivel
Tripod
Tripod hub
Left front leg
Right front leg
Rear leg
Left foot
Right foot
Rear foot
Spreader brace
Swivel head
Azimuth head
Yoke arms
Elevation pivot
Tilt cradle
Main tube
Upper band
Middle band
Lower band
Objective cell
Objective lens
Finder scope
Finder lens
Eyepiece
Focus knob

Note: 1,476 triangles, 6 materials named after Wizard's Tower palette colours, no textures. The baked 'scene-motion' clip animates only the swivel (pan ±14°) and tilt (±5.5° around the elevation) groups, both pivoting at (0, 1.30, 0); the tripod is static. Part ids use the short 'telescope.' prefix because the kit's id rule does not allow hyphens. magicGlow scales the emissive rune-cyan lenses; the rune cyan lens albedo is darkened to 45% so the hue holds under light. Params are baked at their defaults in the GLB, and the clip is baked at the default 30° elevation. glb-lint flags the yoke arms as 'detached' only because they sit in a separate group from the head ring they rest on.
